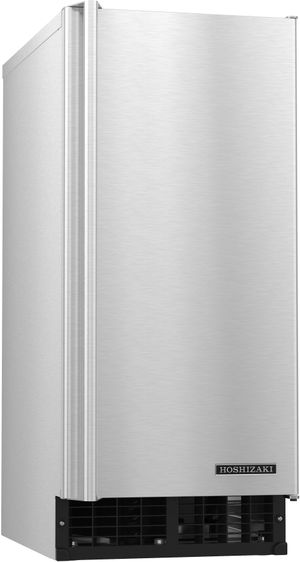

Hoshizaki 15" 55 lb. Stainless Steel Undercounter ADA Compliant Ice Maker

Hoshizaki

Model #:

AM-50BAJ-AD

Hoshizaki 15" 55 lb. Stainless Steel Undercounter ADA Compliant Ice Maker-0
Hoshizaki 15" 55 lb. Stainless Steel Undercounter ADA Compliant Ice Maker-1
Hoshizaki 15" 55 lb. Stainless Steel Undercounter ADA Compliant Ice Maker-2

At a Glance

Product Dimensions 31.5"h x 14.88"w x 22.63"d

This compact undercounter Top Hat Icemaker is the perfect addition to any hotel suite, office breakroom, or kitchen. The AM-50BAJ-AD is capable of producing approximately 55 lbs of Top Hat style ice cubes per day, and the built-in storage bin will hold up to 22 lbs of ice at a time. The Undercounter design is less than 32" tall, ADA compliant. The Air-cooled design also features a Front in, front out airflow system that eliminates the need for side and rear clearance. Perfect for fitting into tight spaces. UL approved for outdoor use. Drain pump not included. Replaces AM-50BAH-AD.Read More

$6,190.00

Get to know this product.

Product Overview

Product Overview

Produces top hat ice cubes

Undercounter design is less than 32″ tall, ADA compliant

Front in, front out airflow

UL approved for outdoor use

Easily disassembled water circuit for easy cleaning

Accessory – HS-5061 drain pump assembly

Single phase, 115v/60/1, 6 ft cord with NEMA 5-15 plug

Clean ice and easy maintenance lead to longer unit life span

Two Years: Parts & Labor warranty on entire machine.

One Year: Parts & Labor warranty on optional HS-5061 Drain Pump Assembly.

Useful Documents
Spec Sheet
Manual
Parts List
Service Manual
Warranty
Specifications

General Specs

ColorStainless Steel
Color/Finish NameStainless Steel
Ice TypeTop-Hat
Ice Storage Capacity (lbs.)22
Number Of Possible Ice Cube Shapes1
Production Rate Ice (lb./day)55
Door Panel TypeSolid
Installation TypeBuilt-In
Outdoor ApprovedYes
Appliance Fit Width (in.)15
Width (in.)14.88
Depth (in.)22.63
Height (in.)31.5
Overall Height (in.)31.5
Product Weight (lbs.)88
Manufacturer Warranty2 Year Parts & Labor
Voltage115

Overview

Ice production55 lbs per 24 hours
Built-in storage capacity22 lbs
Heat Rejection1900 BTU/hr
Ambient temperature range45 – 100°F
Water temperature range45 – 95°F
Water pressure7 – 113psig
Voltage range104 – 127V
Amps3.8 amps (15 Amp Max fuse)
ADA compliantYes
