Product Dimensions 77"h x 30"w x 28"d

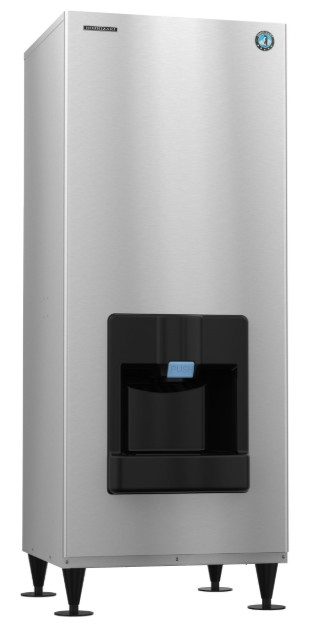

The DKM-500BWJ is capable of producing approximately 540 lbs of Crescent Cube style ice cubes per day, and the built-in dispensing system holds up to 140 lbs in insulated storage to ensure you always have enough ice on hand!Read More
Up to 540 lbs of ice produced per 24 hours
Up to 140 lbs of built-in storage capacity (6.7ft3)
Push button operated, 13 lbs of crescent cube ice/min
Durable, attractive one piece stainless steel exterior
Ice dispensing height is ADA compliant
CycleSaver™ design
R-404A refrigerant (1 lbs. 2 oz. / 510 g)
Water temperature range: 45 – 90°F
Clean ice and easy maintenance lead to longer unit life span
Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug, Amperage: 12, Max Fuse/HACR Breaker: 20 A
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 7700 BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 2 oz. / 510 g)
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/8″ FPT x2 Drain, Minimum 1/4″ Nominal ID Drain Hard Pipe or Equivalent, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent
4.79 kWh per 100 lbs @ 90/70, 18 gal of Potable Water per 100 lbs @ 90/70
General Specs | |
| Depth (in.) | 28 |
| Height (in.) | 77 |
| Ice Storage Capacity (lbs.) | 540 |
| Color | Stainless Steel |
| Commercial Use Approved | Yes |
| Series | Crescent® Cuber |
| Installation Type | Freestanding |
| Overall Height (in.) | 77 |
| Garage Ready | No |
| Production Rate Ice (lb./day) | 540 |
| Width (in.) | 30 |
| Manufacturer Warranty | 3 Years Parts & Labor on Entire Machine / 5 Years Parts on Compressor & Condenser |
| Outdoor Approved | No |
| ENERGY STAR Certified | No |
| Appliance Fit Width (in.) | 30 |
| Smart Compatible | No |
| Wifi Capable | No |
| Defrost System | Manual |
| ADA Compliant | Yes |
| Locking Door | No |
| Product Weight (lbs.) | 347 |
| Voltage | 115 |
| Frequency | 60 |
| Amp | 12 |
| Number Of Possible Ice Cube Shapes | 1 |
| Ice Type | Crescent |
