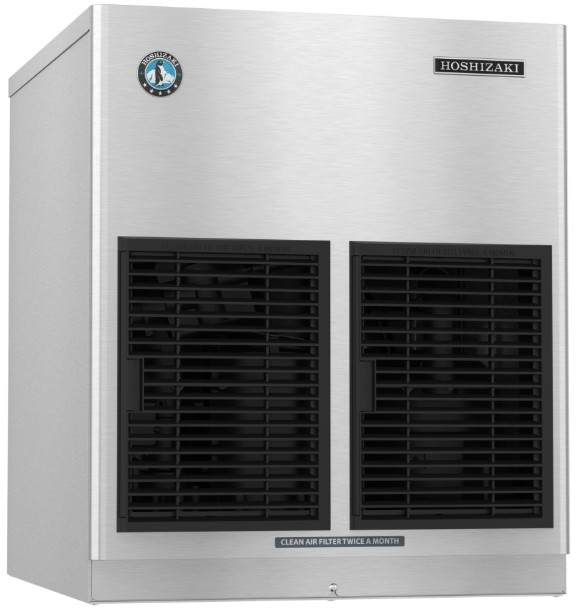

Product Dimensions 26"h x 22"w x 24"d
The FD-1002MAJ-C is capable of producing approximately 890 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat.Read More
This Air-cooled, Slim Line Dispenser icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The FD-1002MAJ-C requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900. Please consult the Specification Sheet for additional details.
Up to 890 lbs of ice produced per 24 hours
Air-cooled, Slim Line Dispenser, 22″ Wide Icemaker
Produces small cubelet nugget-style ice
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900
2 second rinse every hour to remove sediment
Advanced CleanCycle24™ design
R-404A refrigerant (2 lbs. 3.3 oz. / 1000 g)
Heat Rejection:8700 BTU/hr
Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included., Amperage: 15.2, Max Fuse/HACR Breaker: 20 A
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 8700 BTU/hr, Refrigerant Charge: R-404A, (2 lbs. 3.3 oz. / 1000)
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
4.57 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
General Specs | |
| Depth (in.) | 24 |
| Height (in.) | 26 |
| Color | Stainless Steel |
| Door Color | Black |
| Commercial Use Approved | Yes |
| Series | Cubelet |
| Color/Finish Name | Stainless Steel |
| Installation Type | Freestanding |
| Overall Height (in.) | 26 |
| Garage Ready | No |
| Production Rate Ice (lb./day) | 890 |
| Width (in.) | 22 |
| Manufacturer Warranty | 3 Years Parts and Labor on Entire Machine / 5 Years Parts on Compressor |
| Outdoor Approved | No |
| ENERGY STAR Certified | Yes |
| Appliance Fit Width (in.) | 22 |
| Smart Compatible | No |
| Wifi Capable | No |
| Defrost System | Manual |
| Door Swing Option | Left Hinge |
| ADA Compliant | No |
| Locking Door | No |
| Voltage | 115 |
| Frequency | 60 |
| Amp | 15.2 |
| Number Of Possible Ice Cube Shapes | 1 |
| Ice Type | Nugget |
| Door Panel Type | Solid |
