Product Dimensions 26"h x 22"w x 27.38"d

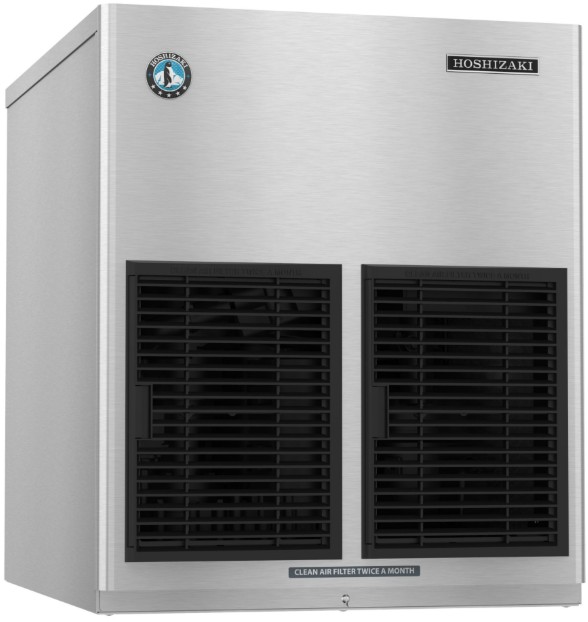

The F-801MAJ is capable of producing approximately 751 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Air-cooled, slim line modular icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain.Read More
The F-801MAJ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1150, B-1300, B-1500, B-1650. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details.
Up to 751 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces flaked ice
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1150, B-1300, B-1500, B-1650
2 second rinse every hour to remove sediment for cleaner ice
Advanced CleanCycle24™ design
Infrared bin control for easy cleaning and reliability
R-404A refrigerant (1 lbs. 12 oz. / 790 g)
Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 11.8, Max Fuse/HACR Breaker: 15 A
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 12 oz. / 790 g)
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
4.5 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
General Specs | |
| Depth (in.) | 27.38 |
| Height (in.) | 26 |
| Ice Storage Capacity (lbs.) | 751 |
| Color | Stainless Steel |
| Door Color | Stainless Steel |
| Commercial Use Approved | No |
| Series | Flaker |
| Installation Type | Freestanding |
| Overall Height (in.) | 26 |
| Garage Ready | No |
| Production Rate Ice (lb./day) | 751 |
| Width (in.) | 22 |
| Manufacturer Warranty | 3 Years Parts and Labor on Entire Machine / 5 Years Parts on Compressor & Air-Cooled Condenser Coil |
| Outdoor Approved | No |
| ENERGY STAR Certified | Yes |
| Appliance Fit Width (in.) | 22 |
| Smart Compatible | No |
| Wifi Capable | No |
| Defrost System | Manual |
| Door Swing Option | Right Hinge |
| ADA Compliant | No |
| Locking Door | No |
| Product Weight (lbs.) | 200 |
| Shipping Depth (in.) | 26.5 |
| Shipping Width (in.) | 32 |
| Shipping Height (in.) | 32 |
| Voltage | 104–127 |
| Amp | 11.8 |
| Number Of Possible Ice Cube Shapes | 1 |
| Ice Type | Crescent |
| Door Panel Type | Solid |
