Product Dimensions 33.88"h x 46"w x 33.25"d

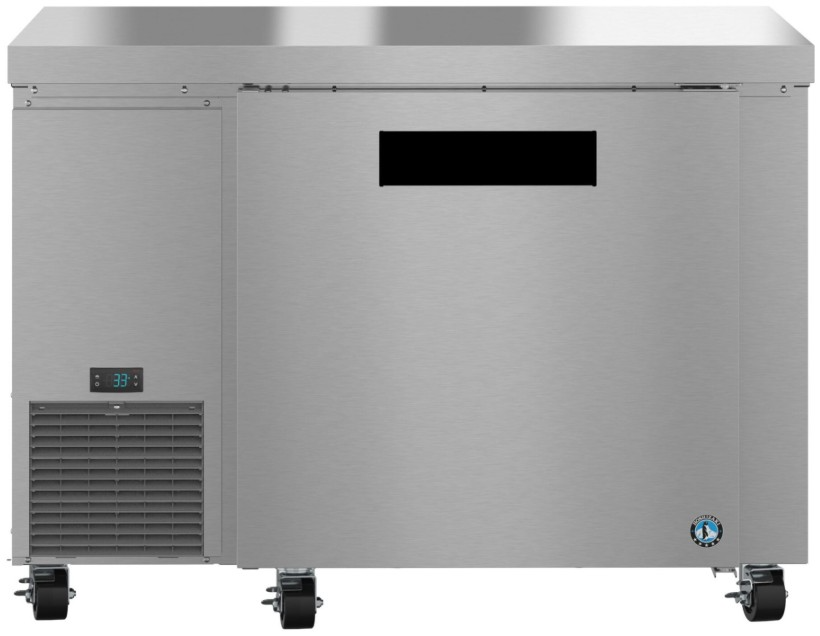

The ULR46B Steelheart Series Undercounter single section side mount refrigerator with a stainless door is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 11.78 cubic feet this efficient undercounter side mount refrigerator and front air flow design is perfect for hot/tight kitchens.Read More
The ULR46B also includes (2) epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports, (4) 4″ stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 0.92 kWh/day at 3 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 2″ or 6″ casters, Overshelves (single or double), Epoxy wire shelf, Stainless steel shelf, Foot pedal kit (left or right hinge), See Spec Sheet for additional options. The unit is ETL Safety (US & C) Listed, ETL Sanitation, Georgia Made Certified, ENERGY STAR® Qualified and includes a 7-7-7 Warranty (seven years labor, seven years parts, seven years compressor — visit hoshizakiamerica.com/support/warranty for eligibility information).
Net capacity of 11.78 cubic feet
Innovative air distribution system distributes air evenly to maintain product temperature
Enamel coated evaporator coil for extended life
Stainless steel exterior (front, sides, top) and a stainless steel interior
Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
Extruded aluminum flush mount door handle
(1) stainless steel door with ABS interior liner
Insulated with 2″ CFC free, foamed in place polyurethane
(2) epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports
Engineered to maintain food safe temperatures in 100°F ambient conditions
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 0.92 kwh/day, Amperage: 3, Max Fuse/HACR Breaker: 15 A
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 28 – 45°F, Refrigerant: R290
Nominal Compres. of 1354 BTU/hr at 1/5 HP, Heat Rejection: 333 BTU/hr
Nominal storage capacity: 11.78 ft3, Interior storage capacity: 11.78 ft3, Door opening: 25.5″ W x 23″ H, Depth with door fully extended: 60.5″ D, Shelves included: 2
General Specs | |
| Width (in.) | 46 |
| Depth (in.) | 33.25 |
| Height (in.) | 33.88 |
| Total Capacity (cu. ft.) | 11.78 |
| Color | Stainless Steel |
| Depth w/Door Open 90 Degrees (in.) | 60.5 |
| Door Color | Stainless Steel |
| Manufacturer Warranty | 7 Years Labor, Parts, & Compressor |
| Fingerprint Resistant Finish | No |
| Series | Steelheart® |
| Collection Code | ULR60B |
| Door Panel Type | Solid |
| Appliance Fit Width (in.) | 46 |
| Ice Maker | No |
| Door Swing Option | Lift Up |
| Depth Type | Standard Depth |
| Ice/Water Dispenser | No |
| Defrost System | Automatic |
| Number of Doors | 1 |
| ENERGY STAR Certified | Yes |
| Commercial Use Approved | No |
| Custom Panel Ready | Yes |
| Installation Type | Freestanding |
| ADA Compliant | No |
| Smart Compatible | No |
| Shipping Depth (in.) | 48.75 |
| Shipping Width (in.) | 34.75 |
| Shipping Height (in.) | 36 |
| Voltage | 115 |
| Frequency | 60 |
| Amp | 3 |
| Type of Refrigerator | Freezerless Refrigerator |
| Defrost Type | Auto Defrost |
| Refrigeration General Features | Wheels |
| Overall Height (in.) | 33.88 |
| Freezer Door Type | Swing Door |
| Garage Ready | No |
Other Dimensions | |
| Adjustable Shelves | 3 |
| Shelf Dimensions (W x D) | 28.75” x 25.5” |
Electrical / Refrigeration | |
| Voltage | 115/60/1 |
| HACR Breaker | 15.0 Amps |
| Electrical Connection (NEMA) | 5-15P |
| Ambient Temp. Range | 45° to 100°F |
| Control Setpoint Range | 28° to 45°F |
| Amperage | 3 |
| Energy Consumption (kWh/day) @ASHRAE | 0.92 |
| Heat Rejection (BTU/Hr.) @NSF | 333 |
| Approx. Nominal Compres. BTU/HR (HP) | 1354 (1/5HP) |
| Refrigerant / Charge Amount (oz) | R290 (2.2 oz) |
